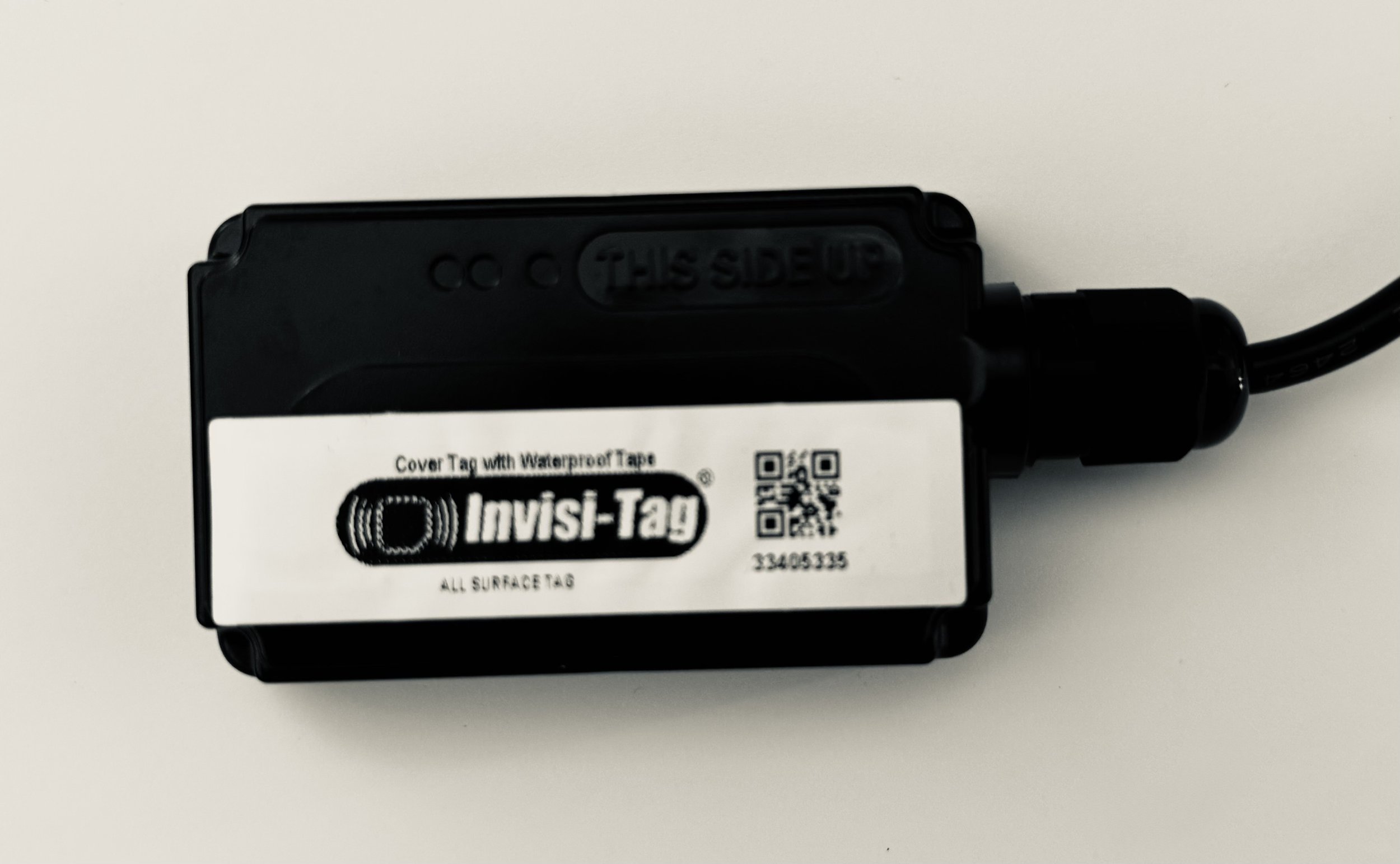

Invisi-Tag® Wireless Hour Meter - Small Fleet

Model Number - 20025

Sigilo wireless hour meter is an easy to install and cost effective enhancement to the Sigilo APP.  The our meter quickly gathers the equipment’s operating hours and transfers the data to the APP.  The App creates work orders for maintenance items which require attention based upon hours of usage.

Description:

Apple and Android compatible. The Sigilo hour meter send information directly to your smart device via Bluetooth.  Any Bluetooth enabled smart device can be used

APP capable:

Hardware:

  • Operating Voltage: 7-24 Volts

  • Maximum Voltage Spike –  1000 Volts

  • Average Current Consumption: 15 mAmps

  • Maximum Current Consumption: 25 mAmps

  • Wire Size: 18 AWG

  • Wireless Frequency: 2.3 GHz

  • Water Resistant

  • Dimensions:  2” x 4” x 1”

  • Mounting Style: Screw flange

Installation:

The hour meter consists of 3 wires, RED = 12 volts, Black = Ground, White = 12 volts “ on” . The black and red wires can be connected to the battery terminals. The white wire can be connected to any wire that is 12 volts when the piece of equipment is on and 0 volts when it is off. Examples of these would be at the key switch or PTO solenoid. The hour meter kit contains a wire splice connector to make installation fast and easy.

What’s in the Hour Meter Kit:

  • (1 pcs) Wireless Hour Meter

  • (2 pcs) double sided adhesive

  • (2pcs) self-tapping screws

  • (3pcs) wire splice connector

Applications:

Any type of equipment with a 12 or 24 volt system. Outdoor power equipment, rental equipment, heavy and light construction equipment, compressors and generators.

Set Up:

To add the hour meter to your Sigilo Fleet App please visit. Simple interface to guide seamless connection.  https://invisi-tag-fleet-management/manuals

Made By:

Sigilo Fleet Management
(248) 363-3257
8230 Goldie St
Walled Lake, MI 48390

Where to Buy:

Back To Top

Invisi-Tag® Wireless Hour Meter - Large Fleet

Model Number - 10012

Sigilo wireless hour meter is an easy to install and cost effective enhancement to the Sigilo APP. The hour meter quickly gathers the equipment’s operating hours and transfers the data to the APP. The App creates work orders for maintenance items which require attention based upon hours of usage.

Description:

Apple and Android compatible. Invisi-Tag hour meters have the unique ability to communication to other hour meters to expand the communication network.

This feature allows a multitude of equipment to transmit information to your smart device in large area.

Network capable:

Hardware:

  • Operating Voltage: 7-24 Volts

  • Maximum Voltage Spike – 1000 Volts

  • Average Current Consumption: 15 mAmps

  • Maximum Current Consumption: 25 mAmps

  • Wire Size: 18 AWG

  • Wireless Frequency: 2.3 GHz

  • Water Resistant

  • Dimensions: 2” x 4” x 1”

  • Mounting Style: Screw flange

Installation:

The hour meter consists of 3 wires, RED = 12 volts, Black = Ground, White = 12 volts “ on” . The black and red wires can be connected to the battery terminals. The white wire can be connected to any wire that is 12 volts when the piece of equipment is on and 0 volts when it is off. Examples of these would be at the key switch or PTO solenoid. The hour meter kit contains a wire splice connector to make installation fast and easy.

What’s in the Hour Meter Kit:

  • (1 pcs) Wireless Hour Meter

  • (2 pcs) double sided adhesive

  • (2pcs) self-tapping screws

  • (3pcs) wire splice connector

Applications:

Any type of equipment with a 12 or 24 volt system. Outdoor power equipment, rental equipment, heavy and light construction equipment, compressors and generators

Communication:

Requires handheld Invisi-Tag link
and smart device.

Set Up:

To add the hour meter to your Sigilo Fleet App please visit. Simple interface to guide seamless connection.  https://invisi-tag-fleet-management/manuals

Made By:

Sigilo Fleet Management
(248) 363-3257
8230 Goldie St
Walled Lake, MI 48390

Where to Buy:

Back To Top

Invisi-Tag® GPS Unit

Model Number – SN-611A AND SN-611B

Sigilo Equipment Management App allows you to keep track of your equipment locations via GPS and equipment records in one place. Sigilo App will help you manage equipment maintenance, repair and inspection, purchase date, warrant, total repair cost and any other notes for your equipment. Our GPS unit will allow you locate on demand via your smart device or on the cloud. You can monitor the time and location that equipment is located at a jobsite. Google map integration. Cellular service is provided by Sigilo by plan selection.

See our features at sigilofleet.com

Description:

Hardware:

  • Operating Voltage: 12-24 Volts

  • Maximum Voltage Spike – 1000 Volts

  • Average Current Consumption: 15 mAmps

  • Maximum Current Consumption: 100 mAmps

  • Wire Size: 22 AWG

  • Cellular service 2g/3g

  • Water Resistant

  • Dimensions: 3.37” x 1.5” x .5”

  • Mounting Style: adhesive

Installation:

The GPS Unit consists of 2 wires, RED = 12 Volts, Black = Ground. The black and red wires can be connected to the battery terminals. Or ideally to the fuse panel on the equipment. Placement of GPS unit should avoid metal covers and damp locations. The label side face up.

What’s in the Box:

  • (1 pcs) GPS unit and 1 meter wires

  • (2 pcs) double sided adhesive

  • (2pcs) wire splice connector

Set Up:

To add the GPS unit to your Sigilo Fleet App please visit invisi-tag-fleet-management.com

Made By:

Sigilo Fleet Management
(248) 363-3257
8230 Goldie St
Walled Lake, MI 48390

Where to Buy:

Back To Top

Invisi-Tag® GPS and Hour Meter

Model Number – SN-700

The Invisi-Tag GPS and Hour Meter unit combines both location and equipment hours recording. This unit is ideal for gathering information on asset utilization, operational efficiencies maintenance reviews and location information. Management can choose to record information daily or in run-time 3-minute intervals.  Information is automatically updated into your cloud account for viewing throughout your entire organization. This tracker combines the equipment runtime recording along with the location of equipment to provide a clear picture of the equipment’s value to profitability. Combining the SN-700 with the Sigilo APP will help you manage equipment maintenance, repair and inspection service events and produce reports that will highlight operational results.

Description:

Hardware:

  • Operating Voltage: 7-24 Volts

  • Maximum Voltage Spike – 1000 Volts

  • Average Current Consumption: 15 mAmps

  • Maximum Current Consumption: 100 mAmps

  • Wire Size: 22 AWG

  • Cellular connection provided

  • Water Resistant

  • Dimensions: 2” x 4” x 1”

  • Mounting Style: Adhesive

Installation:

Model SN-700 consists of 3 wires, RED = 12 Volts, Black = Ground, White = 12 Volts on. The black and red wires can be connected to the battery terminals. The white wire can be connected to any wire that is 12 volts when the piece of equipment is on and 0 volts when it is off.

Examples of these would be at the key switch or PTO solenoid. You will be supplied with a wire splice connector to make installation fast and easy. Place your unit in a location where it is not covered by metal and the antenna is face up.

What’s in the Box:

  • (1 pcs) GPS and Hour Meter Unit

  • (2 pcs) double sided adhesive

  • (3pcs) wire splice connector

Set Up:

To add the GPS unit to your Sigilo Fleet App please visit www.sfmgmt.com/usermanual.html

Made By:

Sigilo Fleet Management
(248) 363-3257
8230 Goldie St
Walled Lake, MI 48390

Where to Buy:

Back To Top

Invisi-Tag® GPS OBD-II Bracket

Model Number – 298765

The Sigilo GPS bracket is designed to secure the OBD-ii tracker to the vehicle

Description:

Installation:

Install OBD unit in vehicle port. Place bracket over OBD unit as shown in diagram. Insert bolts thru bracket and mounting holes. Tighten nuts and bolts with Allen wrench.

What’s in the Box:

  • (1 pcs) Bracket

  • (4 pcs) Nuts

  • (4pcs) Bolts

Set Up:

To add the GPS Sigilo Fleet App please visit

www.sfmgmt.com/usermanual.html

Made By:

Sigilo Fleet Management
(248) 363-3257
8230 Goldie St
Walled Lake, MI 48390

Back To Top
